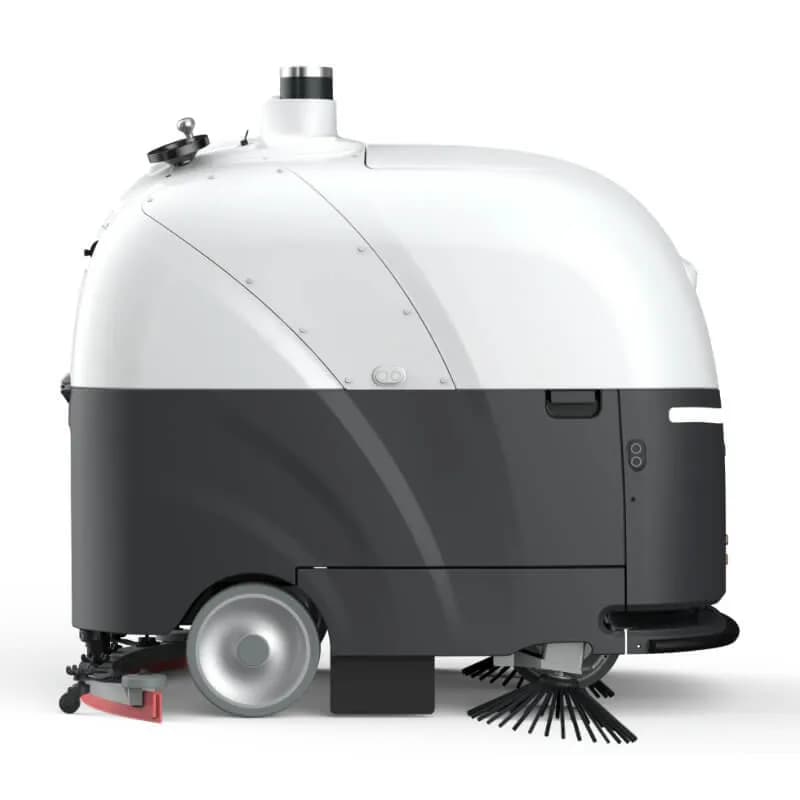

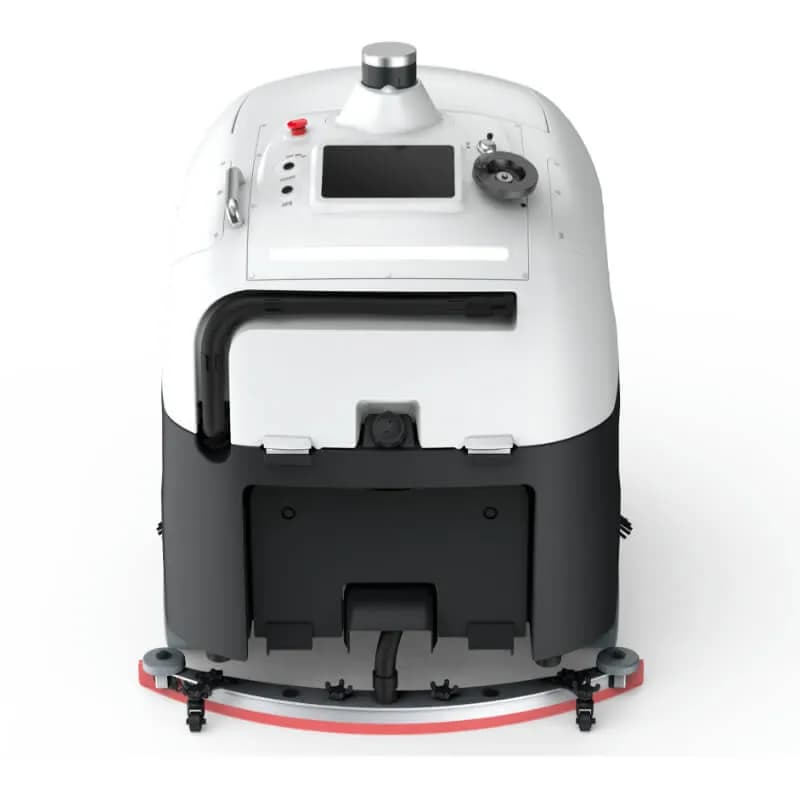

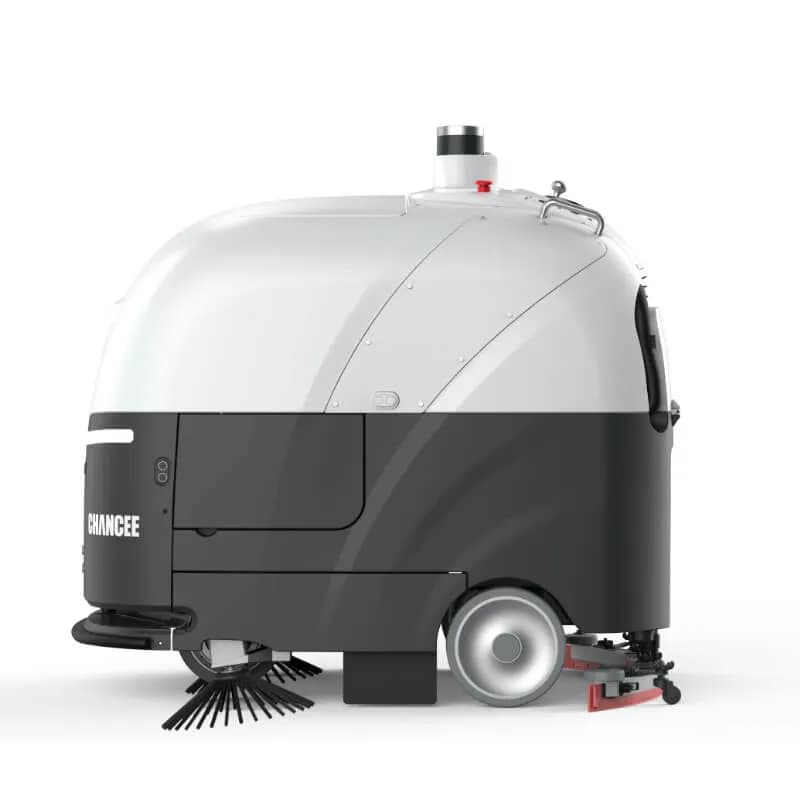

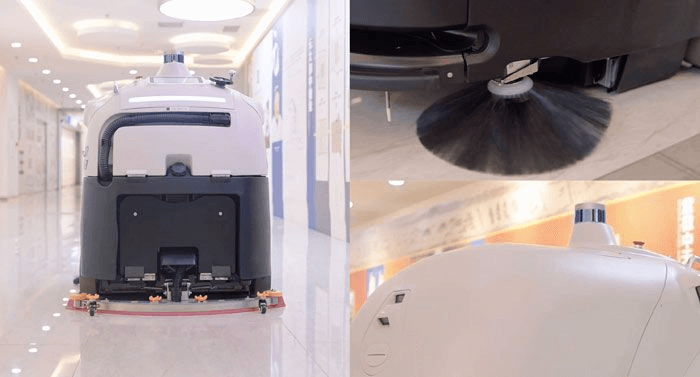

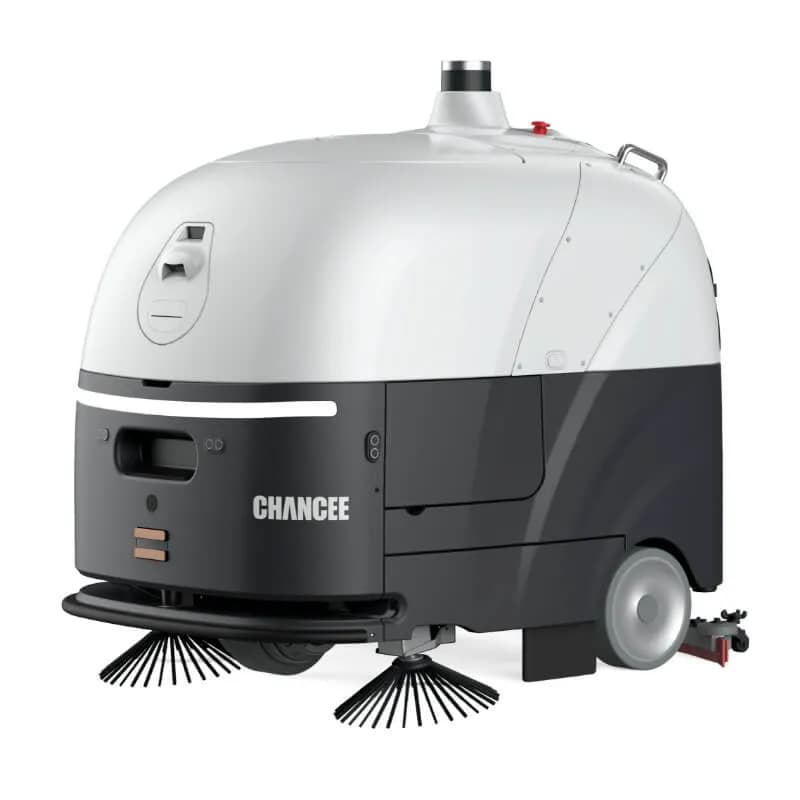

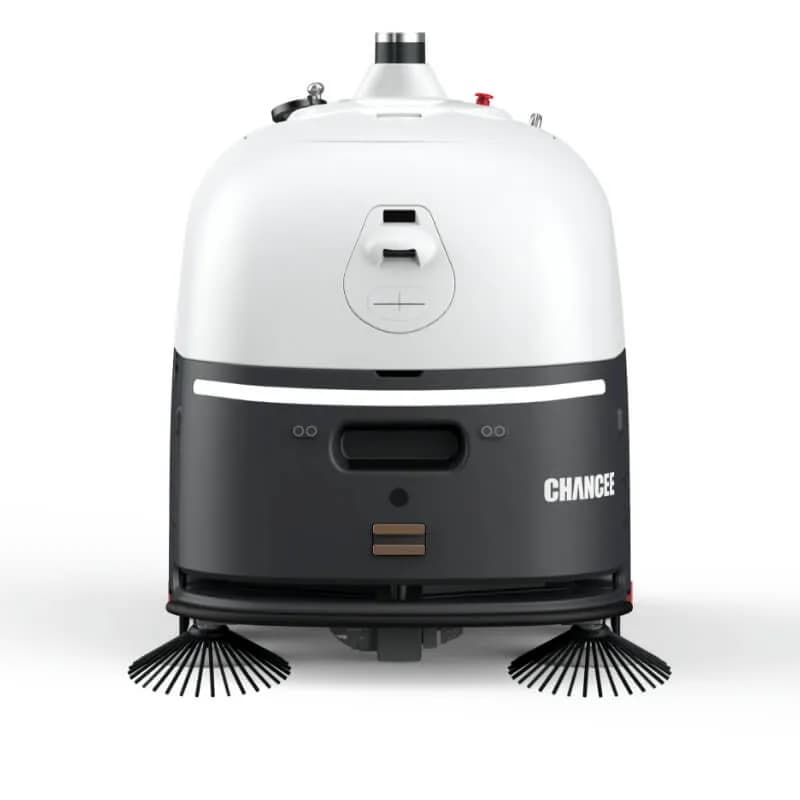

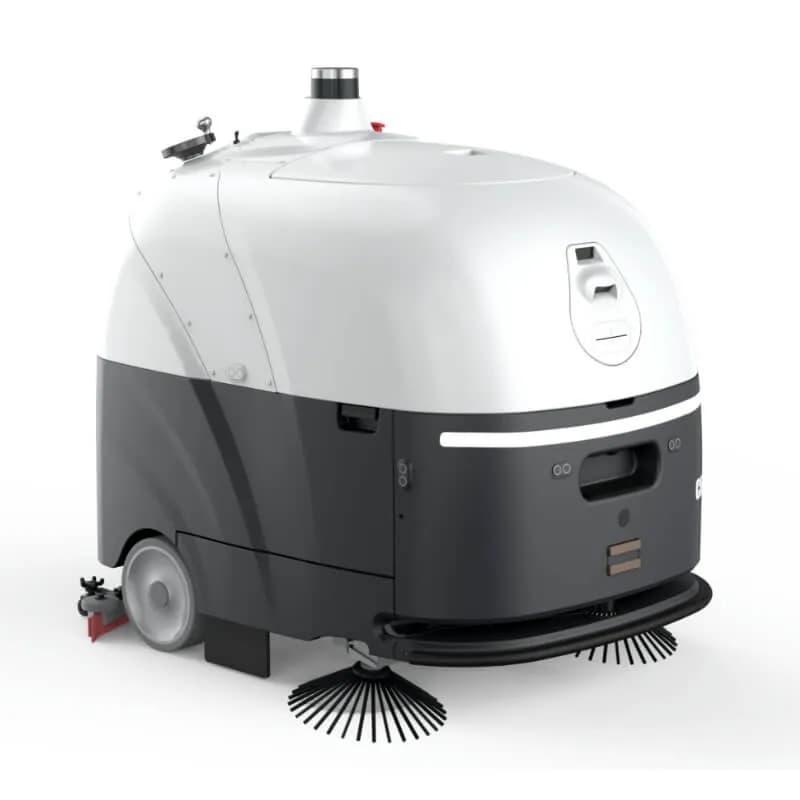

T-SC80 Autonomous Floor Scrubber
Intelligent High-Capacity Robotic Floor Scrubber for Large AreasParagraph 1: The T-SC80 Autonomous Floor Scrubber is an advanced intelligent cleaning robot designed for large industrial and commercial environments. It combines powerful scrubbing performance with autonomous navigation, making it ideal for factories, warehouses, shopping malls, airports, and other large-scale facilities. Paragraph 2: Equipped with a multi-sensor fusion system including 3D LiDAR, 2D LiDAR, RGBD cameras, ultrasonic sensors, and anti-collision technology, the SC80 ensures accurate positioning and reliable obstacle detection. Its intelligent path-planning algorithm enhances cleaning efficiency, achieving up to 4000 m²/h. The machine features a 36V 200Ah battery, 140L clean water tank, and 170L recovery tank, allowing continuous operation for 4–6 hours. Paragraph 3: Designed for long-duration, worry-free operation, the SC80 supports automatic charging, drainage, and minimal human intervention. Its robust construction, large tank capacity, and efficient cleaning system ensure high productivity, reduced labor costs, and safe operation in complex environments.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- Autonomous floor scrubbing
- Intelligent route planning
- Accurate positioning and mapping
- Obstacle detection and avoidance
- Large-area cleaning automation
- Automatic charging and drainage
- Continuous long-duration operation
- High-efficiency cleaning cycles
- Safe operation in complex environments
- Reduced manual labor requirements
▼ Product Parameters
| Parameter | Value | Available customisation |
|---|---|---|
| Cleaning Type | Autonomous Floor Scrubber | |
| Cleaning Width | 1160 mm | |
| Scrubbing Width | 800 mm | |
| Battery Capacity | 36V / 200Ah | |
| Charging Time | 4–5 Hours | |
| Working Time | 4–6 Hours | |
| Cleaning Efficiency | 4000 m²/h | |
| Clean Water Tank | 140 L | |
| Recovery Tank | 170 L | |
| Trash Bin Capacity | 1.5 L | |
| Noise Level | ≤70 dB | |
| Max Travel Speed | 1.5 m/s | |
| Min Turning Radius | 1200 mm | |
| Min Passage Width | 1200 mm | |
| Obstacle Clearance | 2.5 cm | |
| Sensor System | 3D LiDAR ×1, 2D LiDAR ×1, RGBD ×4, Ultrasonic ×6, Collision & Anti-drop Sensors, IMU, Wheel Encoder |
▼ Features

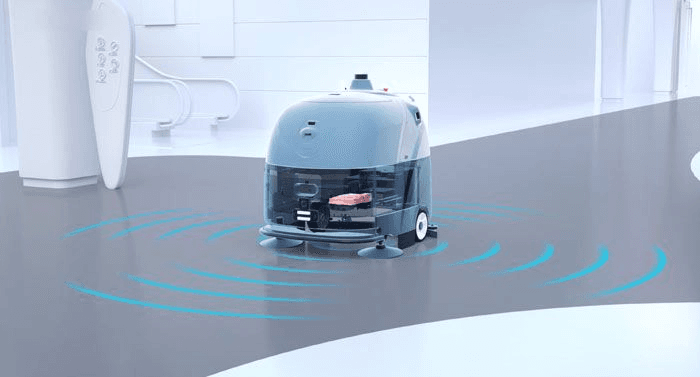

Advanced Sensor Fusion
Combines LiDAR, RGBD cameras, ultrasonic and anti-collision sensors
Intelligent Navigation
Smart path planning for optimized and efficient cleaning
High Cleaning Efficiency
Covers up to 4000 m² per hour
Large Capacity Tanks
140L clean water and 170L recovery tank for long operation
Long Battery Life
36V 200Ah battery supports 4–6 hours of continuous work
Autonomous Operation
Automatic charging and drainage with minimal supervision
Heavy-Duty Cleaning
800 mm scrubbing width with strong performance
